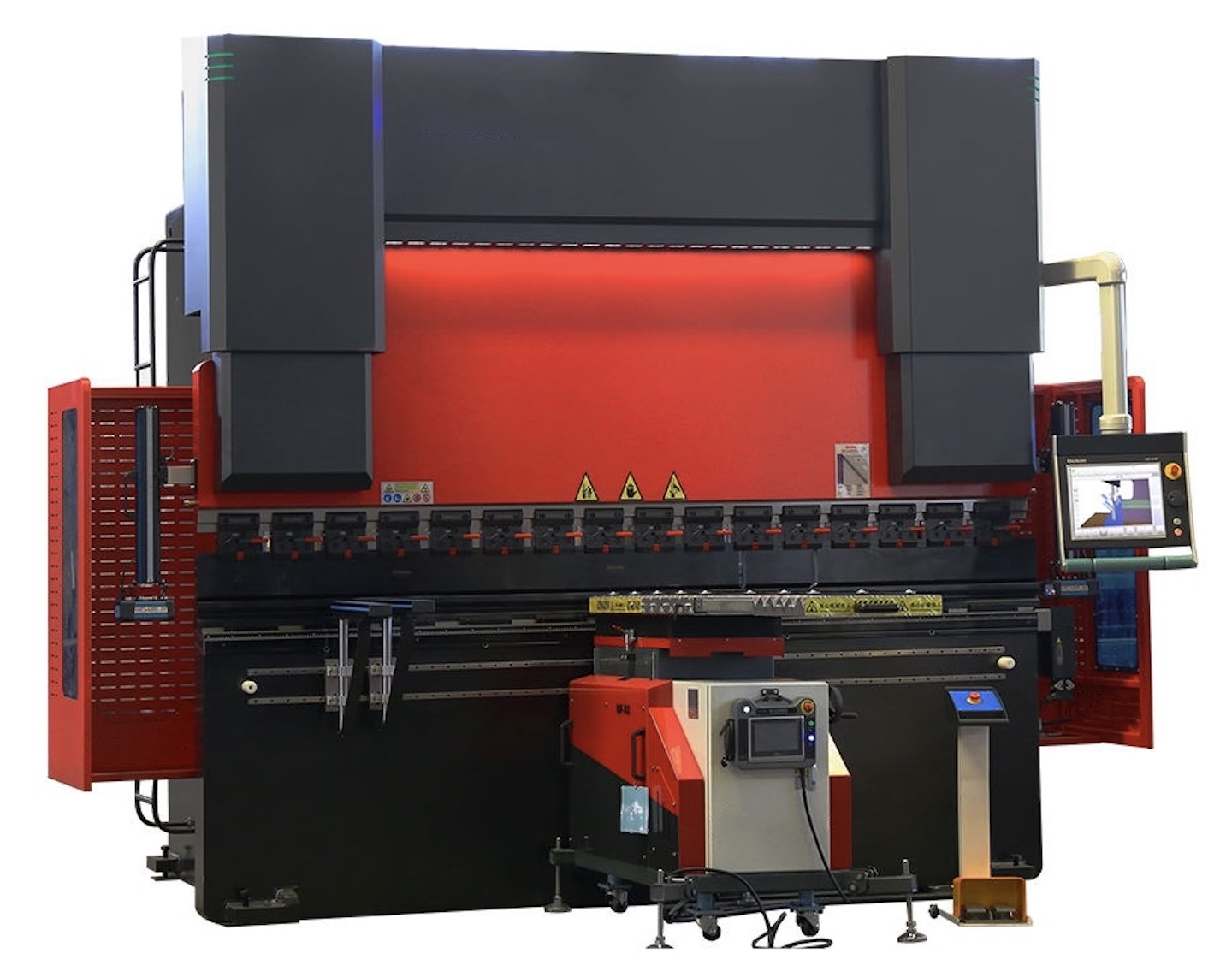

Electro-hydraulic servo CNC hydraulic Press brake

1. Control : CNC system
2. Main Motor: Siemens / Inovance
3. Electrical appliances: Schneider
4. Oil pump: Sunny
5. Valve group: Rexroth

15000USD-27000USD

Product Description:

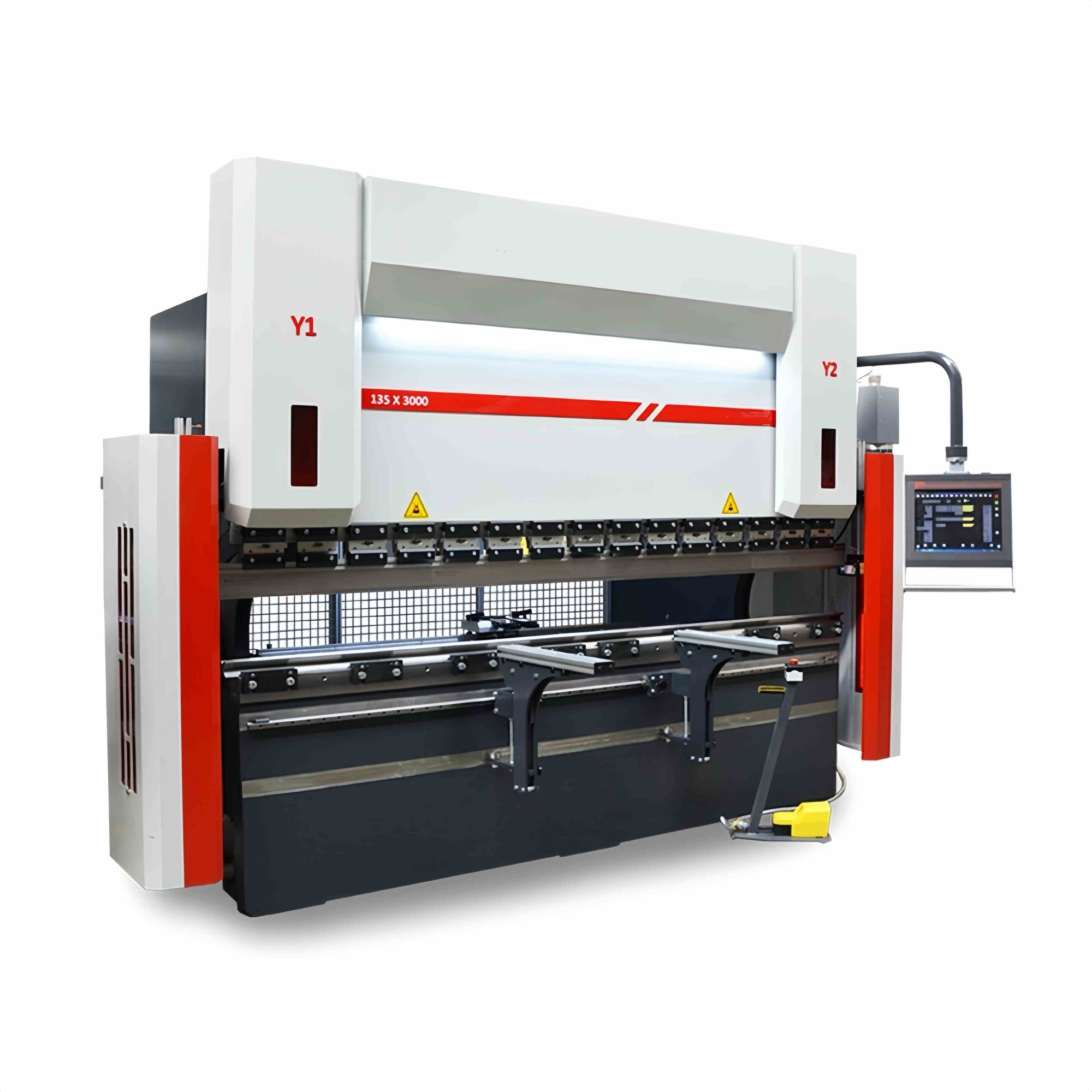

160T3200 DA53TX CNC hydraulic Press brake

Halsen press brakes benefit your bottom line with higher quality parts, faster cycle times, lower operating and maintenance costs. Whether your application requires bending simple shapes or complex parts, Halsen has a press brake to match your needs and your budget. Halsen press brakes are designed for reliability, repeat-ability, precision, performance and ease-of-operation.

We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. Halsen can also custom design and manufacture a press brake to your exact needs.

Item	Nominal pressure (KN)	Workbench length (mm)	Poles distance (mm)	Throat depth (mm)
40T1600	400	1600	1300	250
63T1600	630	1600	1300	300
80T1600	800	1600	1300	300
110T3200	1100	3200	2700	400
160T3200	1600	3200	2700	450
200T3200	2000	3200	2700	450
250T3200	2500	3200	2700	450
300T3200	3000	3200	2700	500
400T4000	4000	4000	3100	500
600T6000	6000	6000	4800	600

Control System

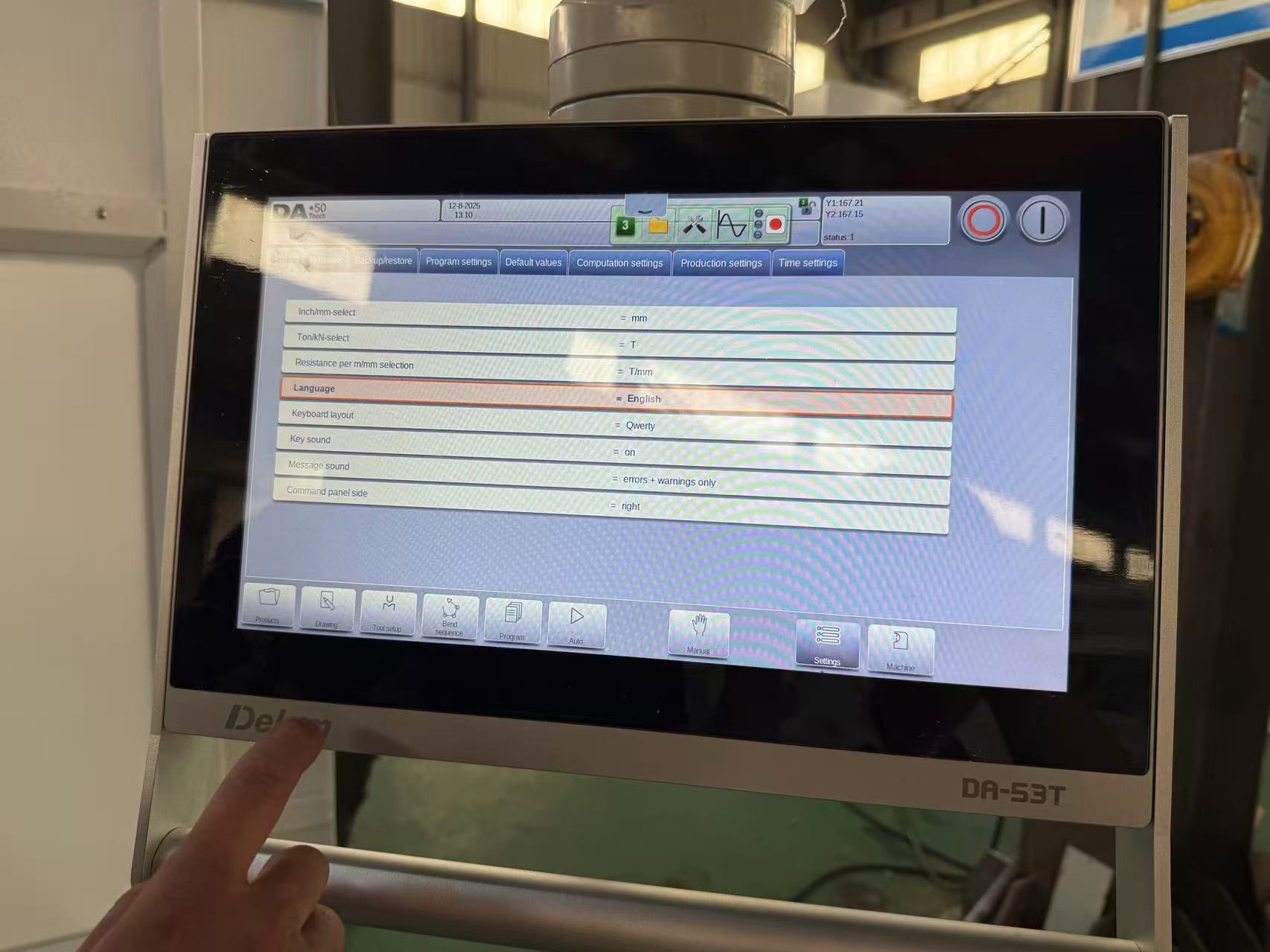

The new DA-53Tx touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine

functionality.

• This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.

Its 15" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the user friendly Delem user- interface. It enables direct "hot-key" touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.

• Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

• Next to a full package of functionality and functions which make everyday work as easy as possible, optionally 2D graphical product and tool programming is supported. USB interfacing is standard and enables fast product and tool backup using USB memory sticks.

Components

Motor

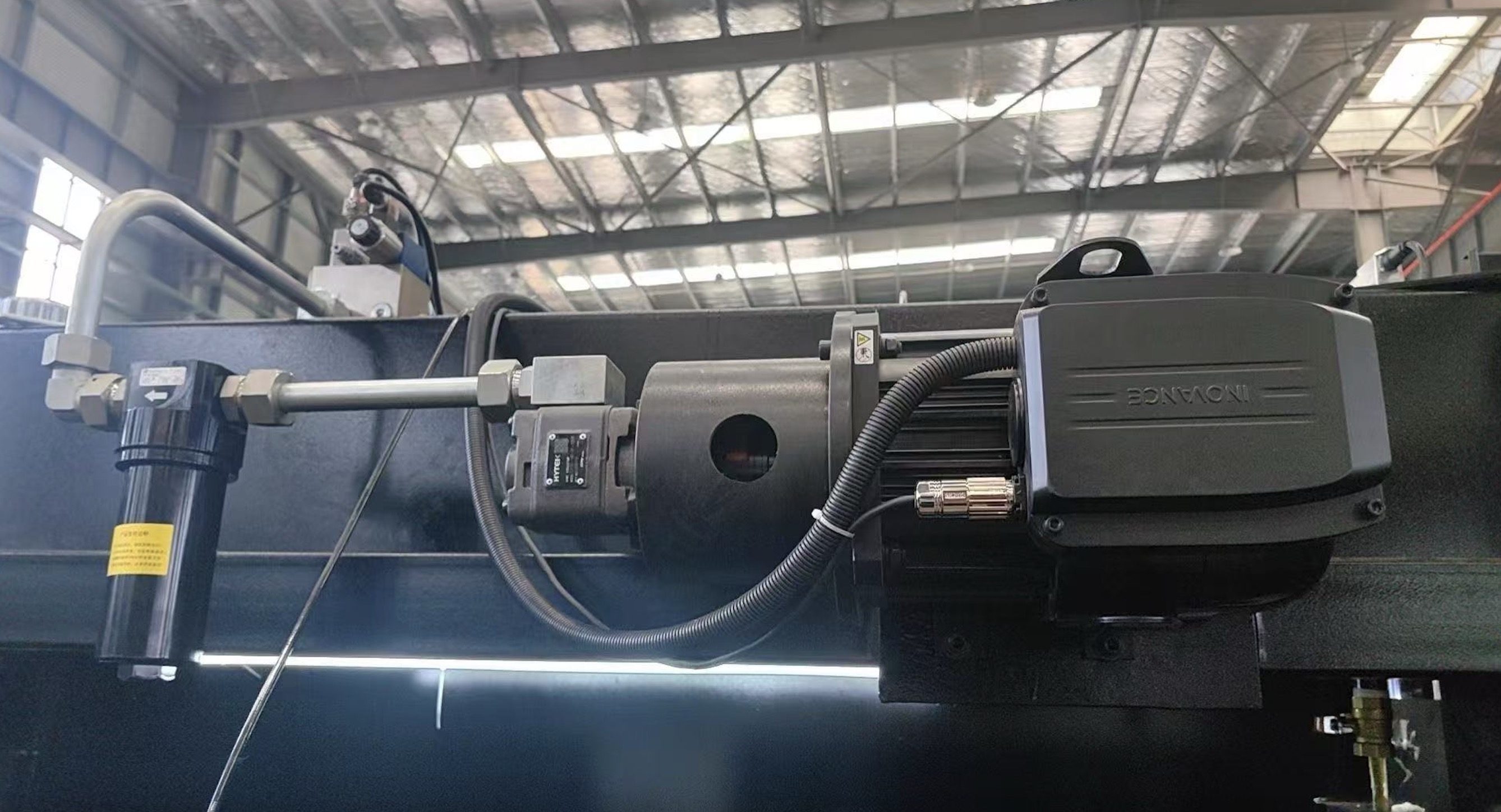

We present a Siemens/Inovance energy-efficient motor from Germany, designed to seamlessly meet the daily production demands of our clientele. This motor operates with substantially greater efficiency than standard motors, presenting an ideal solution to fulfill our clients' requirements.

Crowning

To ensure accurate and consistent bend angles across the length

of the workpiece, regardless of material thickness, reducing scrap

and improving efficiency. It enhances the press brake's versatility

by compensating for die deflection, ensuring that the final product

meets desired specifications with precise bending angles.

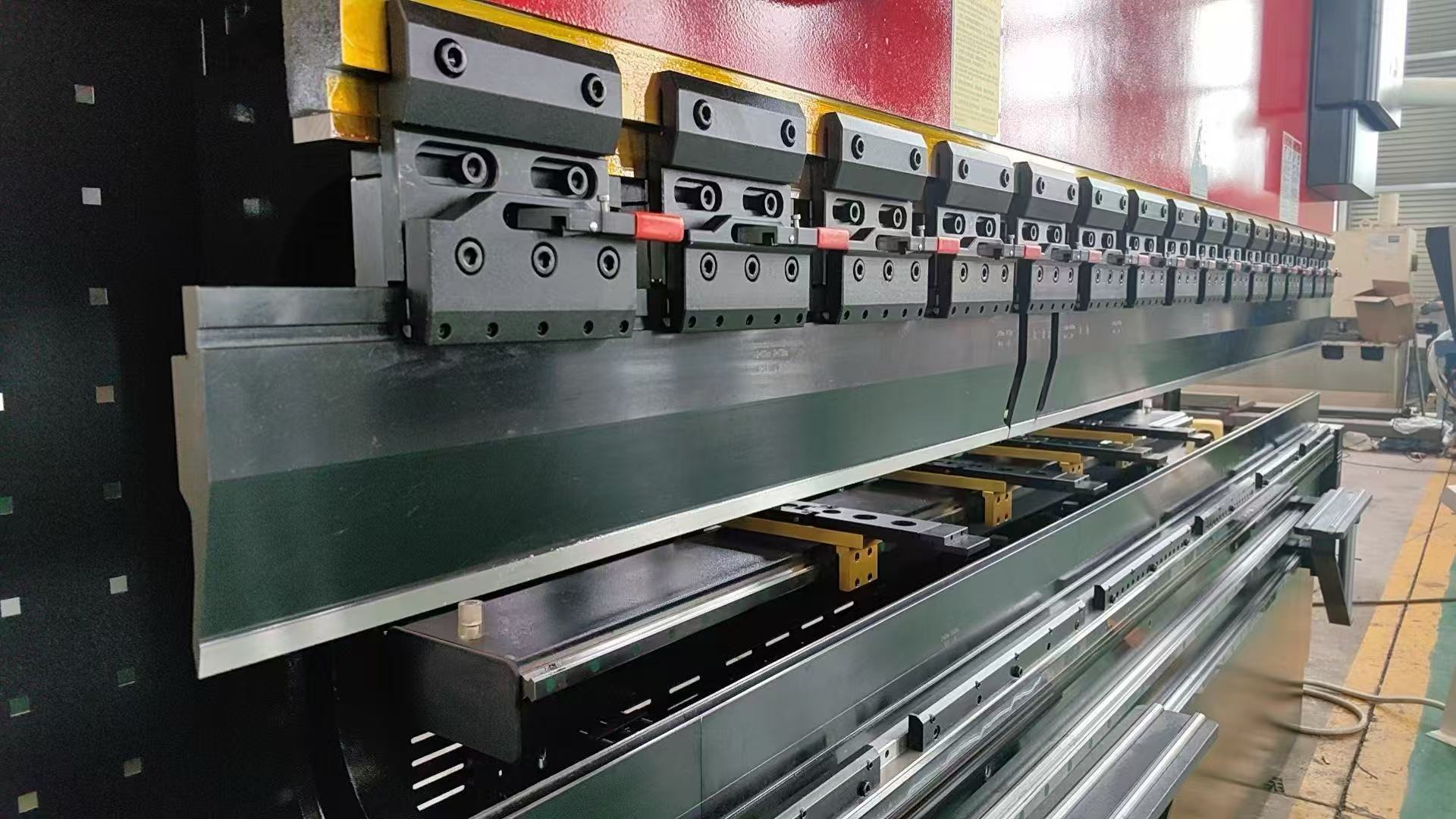

Side Fast Clamp

Revolutionize your production efficiency with the ability to seamlessly interchange top punches. Streamlining your workflow, this feature ensures a swift and efficient process when adapting to diverse bending requirements.
