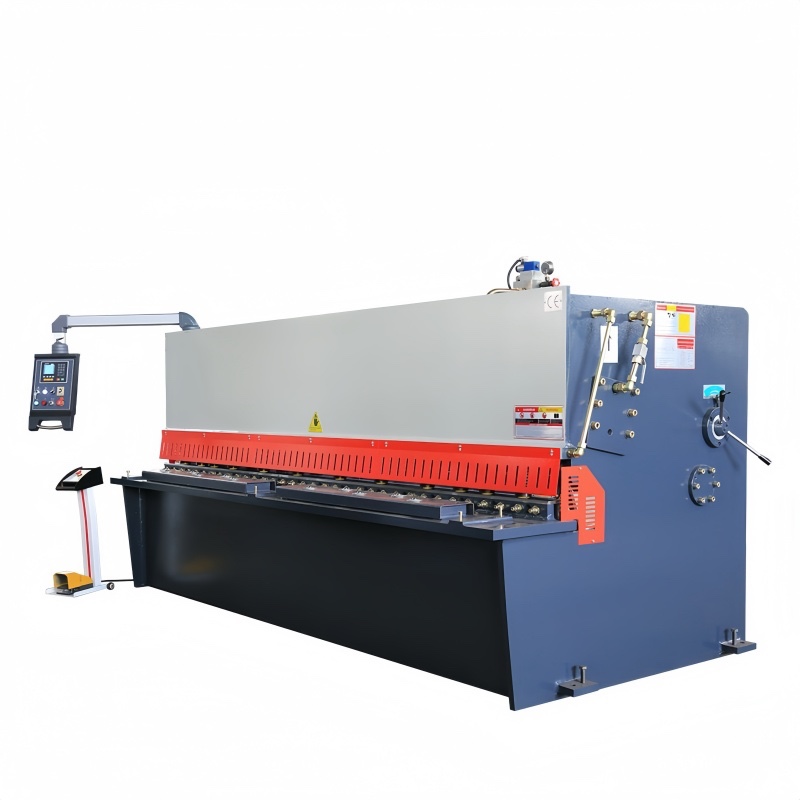

QC12K CNC hydraulic swing shearing machine

1. Control system: E21,TP10,DAC310,etc.
2. Pump: Sunny
3. Hydraulic System:Bosch-Rexroth from Germany
4. Main Motor: Siemens from Germany Brand

8000USD-13000USD

Product Description:

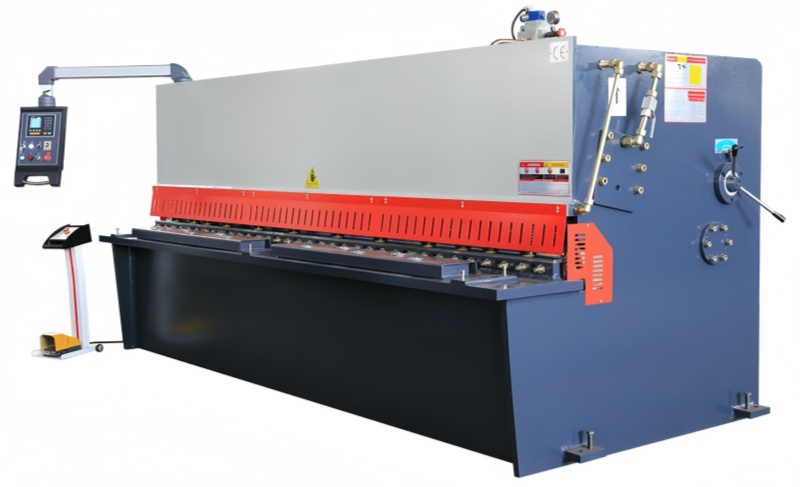

QC11K-10x3200 CNC hydraulic guillotine shearing machine

Halsen guillotine shearing machine is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality.

Product Detailes

Mechanical Structure

Steel plate welded structure, hydraulic transmission, and accumulator return ensure robust durability and efficient operation.

User-friendly design enhances ease of operation and accessibility for users.

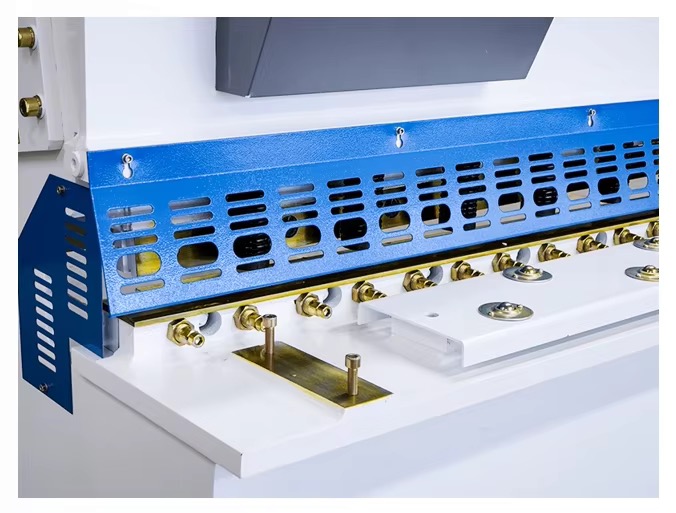

Ball Integrated Front Table & Feed port

The ball-type front support minimizes friction, enhancing plate smoothness, a key feature of theproduct.

Improved feeding convenience and speed boostcutting efficiency significantly, a standout advantage of this innovation.

The feed port design of our machine complies with international safety standards, guaranteeing secureand dependable operation.

The machine provides a precise feeding height range , with adjustable height screws for convenient height customization.

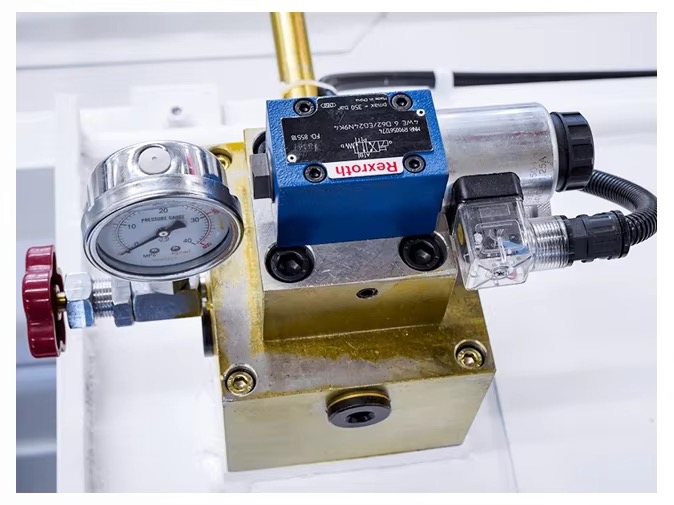

Hydraulic System

Utilizes Rexroth hydraulic valve block for superior hydraulic performance, enhancing reliability and efficiency.

Oil pressure overload protection system minimizes oil leakage and valve jamming, ensuring uninterrupted machine operation.

Real-time oil pressure monitoring feature maintains smooth oil circuit operations, guaranteeing stable equipment performance.

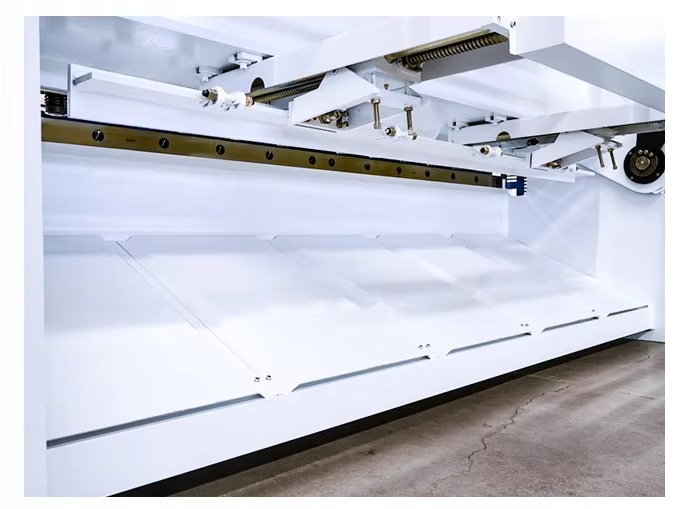

Backgauge

The heavy-duty backgauge design of the product enhances collision resistance and minimizes deformation, ensuring durability and precision incutting operations.

The convenient backgauge rack facilitates easy retrieval of cutting materials, streamlining work flow efficiency.

The availability of both manual and automatic backstop lifting functions caters to diverse cutting needs, accommodating longer materials with ease.

Model (Q12K Series)	Cutting thickness(mm)	Cutting length(mm)	Cutting Angle(degrees)	Throat Depth (mm)
6x2500	6	2500	1.5	100
6x3200	6	3200	1.5	100
6x4000	6	4000	1.5	100
8x2500	8	2500	2.0	100
8x3200	8	3200	2.0	100
8x4000	8	4000	2.0	100
10x2500	10	2500	2.0	120
10x3200	10	3200	2.0	120
10x4000	10	4000	2.0	120
12x2500	12	2500	2.5	120
12x3200	12	3200	2.5	120
12x4000	12	4000	2.5	120
16x2500	16	2500	2.5	120
16x3200	16	3200	2.5	120
16x4000	16	4000	2.5	120
20x2500	20	2500	3.0	120
20x3200	20	3200	3.0	120
20x4000	20	4000	3.0	120

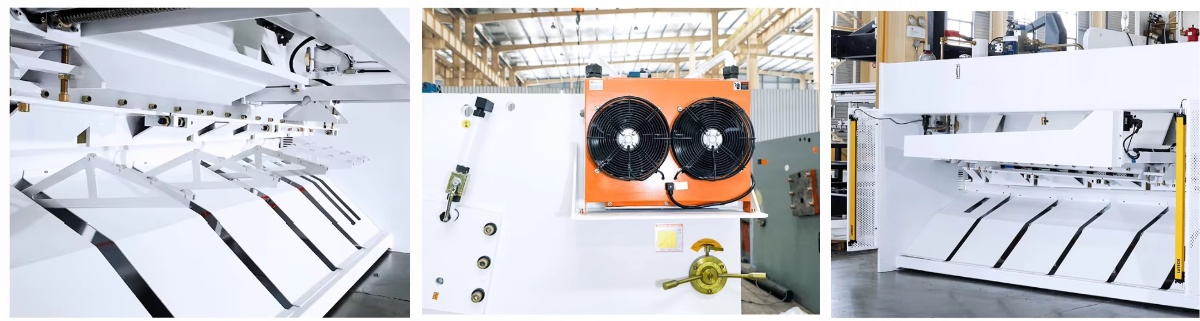

Option


1. Pneumatic Rear Support

The machine provides the convenience of cutting wide sheets with a single key closure feature, enhancing user efficiency and ease of operation.

2. Hydraulic Oil Cooling Device

The machine's operational durability in high-temperature settings allows for continuous use over extended periods without compromising performance or reliability.

3. Rear Protection Device

Implementation of photoelectric protection enhances personal safety, specifically protecting fingers from harm.
